Laboratory Cabinets

Tube Storage Cabinet

LABORATORY
TUBE STORAGE CABINET

Tube Storage Cabinet are specially designed enclosures that ensure the safe storage of pressurized gas cylinders used in laboratories and industrial facilities. These cabinets protect cylinders containing explosive, flammable, toxic, or inert gases against risks such as tipping over, damage, or fire.

Tube Storage Cabinet are specially designed enclosures that ensure the safe storage of pressurized gas cylinders used in laboratories and industrial facilities. These cabinets protect cylinders containing explosive, flammable, toxic, or inert gases against risks such as tipping over, damage, or fire.

LEARN MORE

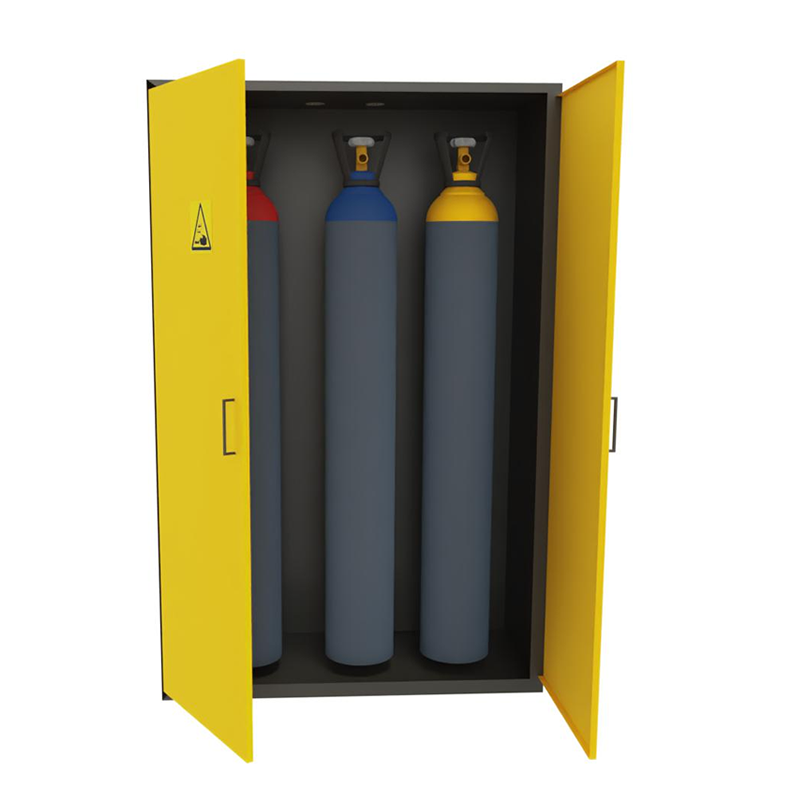

Compressed Gas Cylinder Storage Cabinet - Orkalab
Tube Storage Cabinet with International Standards

Our Tube Storage Cabinet models are manufactured in accordance with international standards.

  • ISO 9001:2015: Quality Management System Certification.
  • EN 14470-2: Standard for gas cylinder storage cabinets.
  • DIN 12925-2: Hazardous material storage systems.
  • RoHS and REACH compliant production.
  • CE Certified Production Process.
Designed to ensure safe storage of Tube Storage Cabinet.
Tube Storage Cabinet Features
Standard Tube Storage Cabinet Features
• Capacity for 1 to 4 cylinders
• Body resistant to chemical and physical effects
• Equipped with lockable doors and securing chains

Fire Resistant Tube Storage Cabinet Features
• Compliant with EN 14470-2 standard
• Fire resistance for 30, 60, or 90 minutes (F30, F60, F90)
• Equipped with automatically closing doors and ventilation system

Open Type Outdoor Cylinder Cabinets
• Made from galvanized sheet metal for direct outdoor use
• Naturally ventilated, cage-type body
• Rust-resistant, UV-protected paint system

Under-Bench and Compact Cylinder Cabinets
• Special dimensions for small-volume laboratories
• Space-saving design
• Ergonomic design for easy accessibility

Cabinets with Optional Automatic Gas Monitoring System
• Integrated pressure sensors inside cylinders, leak detection systems, and alarms
• Preferred for advanced gas safety
Cylinder Capacity:
• Models suitable for 1, 2, 3, or 4 gas cylinders of 50 liters
• Optional modules with shelves or without cylinders

Body Structure:
• Galvanized steel body or stainless steel options
• Coated with electrostatic powder paint
• Insulation seals that expand in case of fire (optional)

Doors:
• Single or double wing, lockable
• Automatic closing mechanism (in fire-resistant models)

Ventilation:
• Passive or active ventilation vents at top and bottom
• Optional exhaust connection
• Natural air circulation preventing gas accumulation

Safety Equipment:
• Cylinder securing chains or strap systems
• Grounding connection
• Gas leak detection module (on request)

Interior Equipment:
• Leak-tight bottom tray (for gas leaks)
• Rail system for easy cylinder replacement (optional)
Body:
• Made of 1.2–1.5 mm thick galvanized sheet metal
• Coated with paint resistant to rust and chemicals
• Double-walled insulated structure in fire-resistant models

Coating:
• Exterior surface: epoxy or polyester-based electrostatic powder paint
• Interior surface: special coating resistant to chemicals and gas vapors

Connection Equipment:
• Cylinder chains, securing brackets, emergency warning labels
• Optional gas connection manifolds
• Analytical and Chemistry Laboratories
• Hospital and Medical Gas Systems
• Food and Pharmaceutical Industry
• R&D and Quality Control Laboratories
• Universities and Educational Institutions
• Industrial Production Facilities
• Gas Filling and Distribution Centers
• Safe storage of explosive and hazardous gases
• Complete protection for high-risk areas with fire-resistant models
• Different construction options suitable for outdoor and indoor use
• Easy installation and maintenance
• Internal fixing mechanism against cylinder falling and tipping over
• Chemically resistant, long-lasting material
• Optional gas leak detection and ventilation systems
